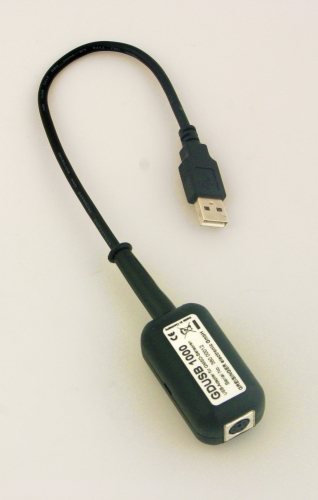

universal USB interface adapter | GDUSB 1000
530,00 EUR
inkl. 19 % USt -> Preis zzgl. Versandkosten
Lieferzeit in der Regel ca. 1 Woche
Art.Nr.: GDUSB1000Produktbeschreibung
complete package incl. software for high-speed live measurement data logging GDUSB FastView
- complete package incl. software for current Windows systems
- live display and live curve presentation
- 1,000 measurements per second live
applications:
- test rigs and laboratory experiments
- detection of pressure peaks
- monitoring of system pressure curves e.g. for process technology, engineering, etc.
- live displaying of measuring values of several GDUSB 1000
- data evaluation and logging for process optimisation or statistics
- Multi-channel measurements with high recording rate
- measurement setups or on-site recordings with GDUSB 1000
functions:
The GDUSB 1000 adapter allows the direct connection of a standard pressure sensor of type GMSD / MSD to the USB interface of a PC. It provides 4 channels, i.e. currently measured value, average value, max and min value. There are two operation modes:
Fast mode:
Up to 1,000 measured values per second. The data are displayed and recorded for later usage by the provided software. The software can be configured to start or stop the recording with several selectable trigger conditions.
Up to 1,000 measured values per second. The data are displayed and recorded for later usage by the provided software. The software can be configured to start or stop the recording with several selectable trigger conditions.
Standard mode:
Up to 32 measured values per second. Similar to a GMH portable measuring device or an EASYBus module. A long term recording can be archived with the software EBS 20M / EBS 60M (2 measured values per second).
Up to 32 measured values per second. Similar to a GMH portable measuring device or an EASYBus module. A long term recording can be archived with the software EBS 20M / EBS 60M (2 measured values per second).
| measuring range: | depends on connected sensor |
| max. range: | -19,999 to +19,999 digit |
| pressure units: | mbar, bar, Pa, kPa, MPa, mmHg, PSI, mH2O, selectable, depending on connected sensor |
| measuring rate: | 1,000 measurements / s (= 1 ms) |
| accuracy: | ±0.2 % FS (at nominal temperature = +25°C) |
| recording interval: | 1 ms (fast mode) ... 10 s adjustable via software |
| connections: | PC: standard USB plug (USB type A) GMSD / MSD: 6-pole screened mini-DIN socket with locking |
| power supply: |
supplied by USB interface |
| dimensions: | 56 x 31 x 24 mm |
| cable length (USB): | approx. 20 cm |
| weight: | 39 g (device only) |
With software for high-speed live measurement data logging GDUSB FastView for fast pressure measurements
system requirements: 1 GHz CPU, 1 GB RAM, 100 MB HDD, 1 available USB port as of Microsoft Windows 7 SP1 (32 or 64 bit)
(not executable with Windows RT, ARM or Intel Itanium based Windows systems)
catalogue page as .pdf:
instruction manual as .pdf:
 |
