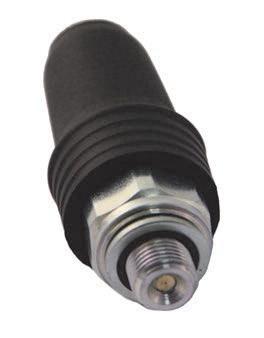

pressure switch | PM1
59,10 EUR
inkl. 19 % USt -> Preis zzgl. Versandkosten
Lieferzeit bzw. Fertigungszeit variiert - bitte erfragen!
Art.Nr.: PM1Produktbeschreibung
general information:
mechanical pressure switch with a membrane or piston pre-tensioned by means of a spring.
The adjustment screw permits to set the switching point.
- adjustable switching point
- change-over contact
- pluggable contact 6.3 x 0.8 with rubber protection cap or round plug connector M12x1
specifications:
| switch: |
mechanical switch
| |
|
process
connection: |
external thread R 1/8, G 1/8, G 1/4, 1/4 NPT, 1/8 NPT, M10x1 | |
| switching range: |
-0.85 bar to 320 bar
| |
| pressure resistance: |
PS 60 bar / 350 bar
| |
| temperature of medium: | -20°C to +80°C (Viton 0°C to +100°C) | |
| ambient temperature: | -20°C to +80°C | |
| media: | water, oils, gases | |
| switching voltage: | 48 V AC/DC max. | |
| switching current: | max. 2 A (1 A inductive) | |
| protection type: | flat plug: IP 00 with rubber protection cap: IP 54 round plug connector M12x1: IP67 with counter-plug) | |
| electrical connection: | flat plug 6.3 x 0.8 or 4-pole round plug connector M12x1 | |
|
materials
medium-contact: |
diaphragm type NBR or EPDM or Viton piston type: PTFE with NBR or EPDM or Viton steel, zinc coated or stainless steel (1.4305) | |
|
weight:
|
0.10 kg | |
| mounting site: | any | |
| For further details p.r.t. data sheet: |  |
 |
