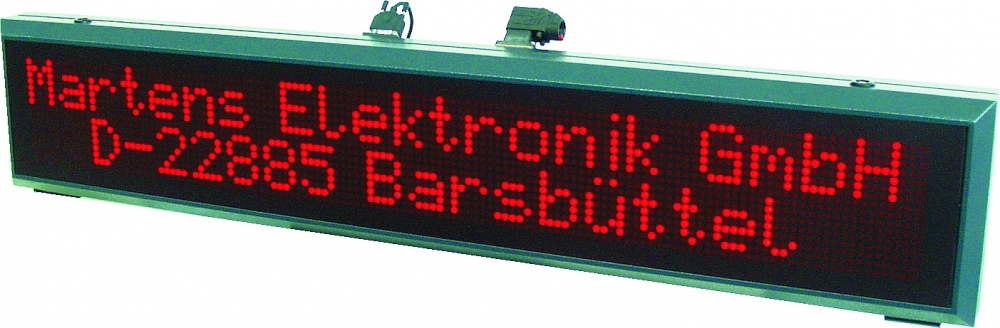

large size display | series migra SC/MC
Price upon request - please contact us!
general information:
The graphics and text compatible large size LED display can be used universally for indication of production data or as an information board.
The modular design allows cost-effective models of various sizes with different character heights and numbers of digits. Due to the high resolution LED dot matrix display, characters as well as graphics are clearly presentable. Important information can be colour-highlighted with the multicolour model (MC).
- LED-dot matrix
- character height 30 mm to 100 mm
- single colour red (SC), multi colour red, yellow, green (MC)
- up to 320 characters, depending on character height
- interface RS485, profibus, AS-interface or ethernet
- ingress protection IP54 or IP65
| auxiliary energy | |
| auxiliary voltage: | 230 V AC 50 Hz, 24 V DC ±20 % |
| power consumption: | 30 W max., depends on the character size |
| working temperature: | 0°C to +50°C |
| input | |
| digital: | pulse counte, A/D-converter |
| interface: | profibus, AS-interface, serial RS485, Ethernet, Modbus |
| display | LED dot matrix; 64 x 16 Pixel per module, 30, 40, 55 mm at 3 mm pixel diameter, 50, 75, 100 mm at 5 mm pixel diameter |
| SC: | single colour red |
| MC: | multi colour red, yellow, green ASCII full graphic character set |
| angle of radiation: | ±75° |
| field case | |
| material: | material aluminium, powder coated anthracite RAL 7016 |
| dimensions: | p.r.t. table in data sheet |
| ingress protection: | IP54 or IP65 |
Commissioned production. We will send you an appropriate offer!
For further details p.r.t. data sheet:
 |
