combined portable measuring device | HD 2156
pH, ORP, conductivity, TDS, temperature

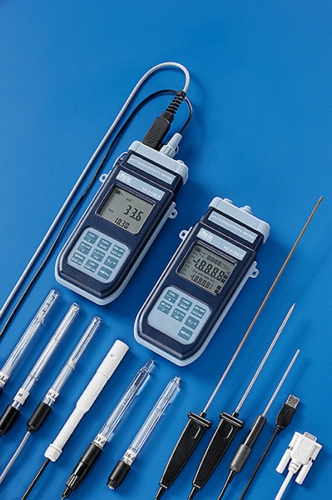

The models HD2156.1 and HD2156.2 are portable instruments with a large LCD display. They measure pH, mV, redox potential (ORP), conductivity, liquid resistivity, total dissolved solids (TDS) and salinity using combined 4-ring and 2-ring conductivity / temperature probes. Temperature only is measured by Pt100 or Pt1000 immersion, penetration, contact or air probes.
The pH electrode calibration, as well as manual, can be carried out on one, two or three points and the calibration sequence can be chosen from a list of 13 buffers.
The calibration of the conductivity probe can be performed automatically in one or more of the 147 μS/cm, 1,413 μS/cm, 12,880 μS/cm or 111,800 μS/cm solutions.
The HD2156.2 instrument has a integrated datalogger. It stores up to 20,000 sets of three measurements composed of pH or mV, conductivity or resistivity or TDS or salinity and temperature: these data can be transferred to a PC from the instrument connected via the RS232C or USB 2.0 serial ports. The storing interval, printing, and baud rate can be configured via the menu.
Both models are fitted with an RS232C serial port and can transfer the acquired measurements to a PC or to a portable printer in real time. The Max, Min and Avg function calculates the maximum, minimum or average values. Other functions include: the Auto-HOLD function and the automatic turning off which can also be excluded.
Probes and cables are NOT included in the scope of supply. Please order separately!
operating conditions: | -5°C to +50°C, 0 % to 90 % r.h., non-condensing |
storage temperature: | -25°C to +65°C |
ingress protection: | IP 66 |
power supply: |
four 1.5 V type AA batteries, autonomy: 200 h with 1,800 mAh alkaline batteries optional: external mains adapter 12 V / 1.000 mA (SWD-10) |
power consumption with instrument shut off: | 20 µA |
security of stored data: | unlimited, independent of battery charge conditions |
serial interface RS232C: | type: RS232C electrically isolated baud rate: can be set from 1,200 to 38,400 bauds data bit: 8 parity: none stop bit: 1 flow control: Xon/Xoff length of serial cable: max. 15 m print interval: immediate or selectable between 1, 5, 10, 15, 30 s, 1, 2, 5, 10, 15, 20, 30 min and 1 h |
USB interface (HD 2156.2): | 1.1 - 2.0 electrically isolated |
storage of data (HD 2156.2): | type: 2,000 pages containing 10 samples each storage capacity: 20,000 sets of three measurements storage interval: 1, 5, 10, 15, 30 s, 1, 2, 5, 10, 15, 20, 30 min and 1 h |
connections: | pH/mV input: BNC socket conductivity and temperature input: 8-pole DIN45326 plug serial RS232C interface: 8-pole MiniDin connector USB interface: MiniUSB B-type connector mains adapter: 2-pole connector (positive at centre) |
For further details p.r.t. data sheet:
|
Kombi-Handmessgerät | HD 2156.1
477,00 EUR inkl. 19 % USt-> Preis zzgl. Versandkosten bzw. Fertigungszeit variiert - bitte erfragen! |
Kombi-Handmessgerät | HD 2156.2
613,00 EUR inkl. 19 % USt-> Preis zzgl. Versandkosten bzw. Fertigungszeit variiert - bitte erfragen! |
